ATV Log Hauler

ATV Log Hauler

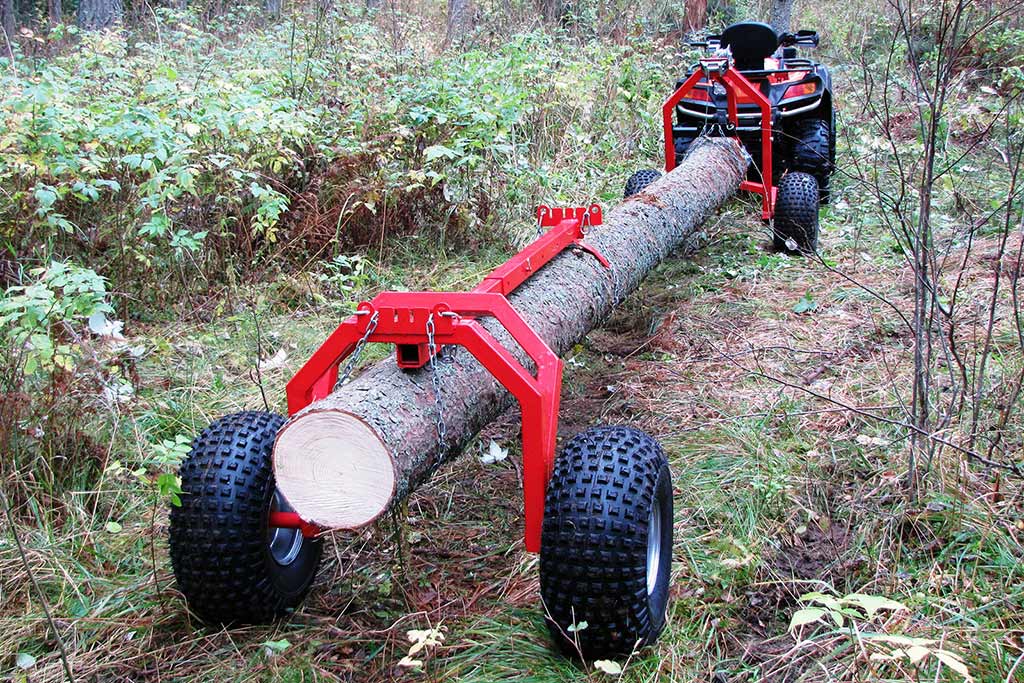

Log hauler allows to pull the logs out without damaging the forest and also keeping the logs clean.

Can be used in tight areas where driving with the big tractor is impossible.

Hanging system for large diameter logs, turnable carrier frame for smaller logs.

Description

Basic version:
➤ 500kg capacity.
➤ Tie down chain and rope to fix the logs onto the hauler frame.
➤ 360 degrees rotating hitch coupling.
➤ The manual winch for pulling logs out of the woods.

Material	Powder coated steel
Winch	800 LBS manual winch
Tyres	22*11-8
Max load Diameter	500 mm
Max Load capacity	1000 kg
Log length	2 -12 m
Max. Speed	45 km / h
Include	3 pieces 1.5 m iron chain
ATV Coupler	Ф50 mm
Dimensions of the front part	1700 x 1200 x 1300 mm
Dimensions of the rear part	1400 x 1100 x 800 mm
Packing	Wooden box
Package Size	Sample package: 14801150780mm Container 14101120530mm + 740780530mm
Weight	120 kg(N.W) / 140 KG(G.W)
